Overview

Understanding the three-dimensional evolution of coronal magnetic fields during solar flares remains a major challenge in solar physics. Since direct coronal measurements are limited, studies rely on photospheric observations and modeling. Routine vector magnetic-field measurements from SDO/HMI have enabled more realistic data-driven simulations, creating a growing need for tools that analyze these complex simulations and validate them with observations.

Methodology

In our new paper (Ref. [1]) we introduce a new diagnostic tool, L-maps, to track the evolution of coronal magnetic field-line length during solar eruptions. L-maps measure the natural logarithm of field-line length ℓ at each point of the lower boundary (photosphere):

L(x,y,t) = ln[ℓ(x,y,t)] .

Using a data-driven simulation of the X2.2 flare SOL2011-02-15 in active region AR 11158 (Ref. [2]), we show how L-maps provide a direct way to validate 3D simulations against observations of flare ribbons and coronal dimmings and to understand the evolution of coronal magnetic fields. Figure 1 shows two examples of L-maps before and during the X2.2 flare.

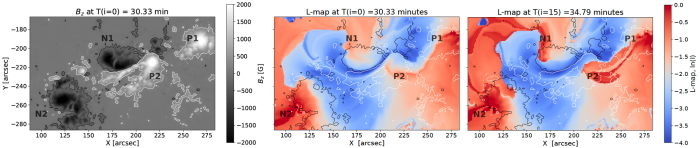

Figure 1: Examples of L-maps. Left: Pre-flare vertical magnetic field from SDO/HMI. Middle and right: L-maps during the pre-flare phase and post-reconnection CME expansion. Colors indicate logarithm of field-line length normalized to the solar radius (red: longest, dark blue: shortest). White and black contours mark ±500 G HMI vertical field.

Changes in L-maps track different patterns of magnetic evolution:

  • Decrease in L -> shortening of field-lines due to reconnection. These occur in flare ribbon regions seen as brightenings (e.g., in 1600 Å), which mark the chromospheric footpoints of newly reconnected magnetic field lines.
  • Increase in L -> lengthening of field lines during eruption. These occur in coronal dimming regions -- dark areas (e.g., 211 Å) observed during CMEs. They represent plasma evacuation along expanding field lines.

Results

In Figure 2 we compare the evolution of ribbon and dimming regions dervied from L-maps with SDO/AIA observations. We find strong spatial agreement between simulated and observed ribbons and dimmings, demonstrating that the simulation captures the key features of coronal magnetic evolution.

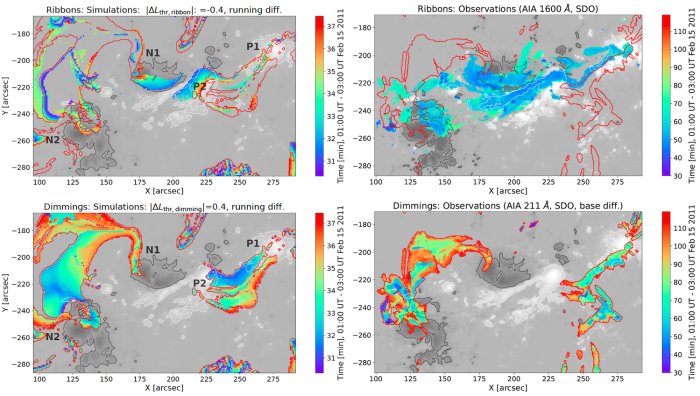

Figure 2: Comparison of simulated (L-maps, left) and observed (SDO/AIA, right) cumulative masks for flare ribbons (top) and coronal dimmings (bottom). Colors show first appearance time (blue early, red late). Contours mark ±500 G HMI vertical field; red contours outline dimming regions.

Three Stages of Magnetic Evolution During an X2.2 Flare

Using K-means clustering of the L-map time series, we identify three distinct stages of coronal magnetic evolution during the eruption (Figure 3).

  1. Slow Preflare Rise Phase: Before flare onset, magnetic field lines rooted in future ribbon locations gradually lengthen, reflecting the slow buildup of magnetic stress prior to reconnection.
  2. Flare Reconnection and CME Rise: During the impulsive phase:
    • a. Field lines anchored in ribbon regions shorten abruptly due to magnetic reconnection.
    • b. Field lines rooted in "reconnection dimming" regions rapidly expand. Unlike classical dimmings, which result from the gradual expansion of CME field lines, reconnection dimmings occur during the reconnection phase and mark the footpoints of newly formed field lines that become part of the erupting flux rope.
  3. Post-Reconnection CME Expansion: After the main reconnection episode, flare loops stabilize while the erupting flux rope continues to rise.

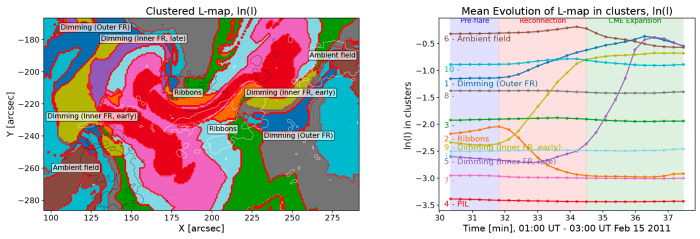

Figure 3: K-means clustering of L-maps identifying three stages of coronal magnetic-field evolution. Left: spatial clusters marking characteristic regions of field-line evolution. Right: mean L-map value L = ln(l) within each cluster. Colors are the same in the two panels.

Conclusions

L-maps provide a new framework for analysis of realistic magnetic-field evolution during solar flares. They allow us to:

  1. 1. Compare and validate simulations with observations, including flare ribbons and coronal dimmings.
  2. Track three-dimensional magnetic connectivity evolution and identify key stages of eruption dynamics.
  3. Reveal new magnetic-field evolution phenomena, such as the reconnection dimming that we find here.</li?

We conclude that as realistic data-driven MHD simulations become increasingly sophisticated, tools like L-maps are essential for interpreting their complex outputs and validating them with observations.
