On the Relationship Between Nanoflare Energy and Delay in the Closed Solar Corona

Nugget
Number:	515
1st Author:	Shanwlee SOW MONDAL et al.
2nd Author:
Published:	January 19, 2026
Next Nugget:	TBD
Previous Nugget:	Fine structures in solar flare ribbons

Introduction

Parker's "nanoflare" hypothesis (Ref. [1]) suggests that tiny impulsive energy releases can explain the high temperature of the solar corona.

The relationship between nanoflare energies and their associated delays (the waiting time between events) provides a key diagnostic of how magnetic energy is stored and released in the solar corona. We have two likely theories of the energy-delay correlation (see also an earlier Nugget):

1) The critical stress scenario, where continuous footpoint motions gradually twist and tangle the magnetic field until a critical threshold is reached, triggering magnetic reconnection. The larger the energy release, the longer the time delay to rebuild stress before the next event, leading to a correlation between the delay and the energy of the previous event (τ_D ∝ E_previous). See panel (a) of Figure 1.

2) Alternatively, in a full energy release scenario, each event relaxes the field to a fixed minimum-energy state, releasing all stored free magnetic energy. In this case, longer delays allow more energy to accumulate, producing larger subsequent events and a correlation between the delay and the energy of the subsequent event (τ_D ∝ E_next). See panel (b) of Figure 1.

In this study we examine whether either of these scenarios applies to nanoflares observed in a small subset of a solar active region.

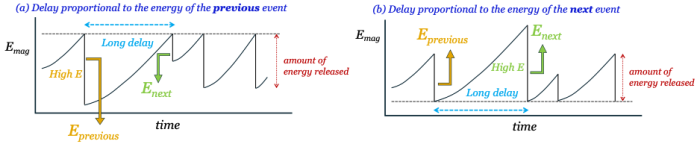

Figure 1: A schematic showing two theoretical models of the correlation between nanoflare delay and energy: (a) delay proportional to the energy of the previous event, and (b) delay proportional to the energy of the next event.

Simulation and Dataset

Model nanoflares investigated in this study are generated self-consistently within a magnetically driven solar active region, as described in Ref. [2]. Their energies and durations are subsequently quantified using three distinct methods (Method A, B and C) outlined in Ref. [3]. In the present analysis, we investigate whether a statistically significant correlation exists between nanoflare energies and their delays, focusing on events identified using Method B. Nanoflares identified using the other two methods lead to the same conclusions and are therefore not shown in this Nugget.

Tests for correlation

To identify potential correlations, we applied two nonparametric statistical tests - t_w (Ref. [4]) and Spearman rank correlation - to the nanoflare populations. Our statistical analysis includes two experiments. First, we conduct a null hypothesis test which evaluates the probability of uncorrelation between the energy (E) and delay (τ_D) datasets. Second, we assume a power-law relationship of the form E ∝ τ_D^α and estimate the value of α.

Results

The histograms (left column of Figure 2) indicate a broad distribution of uncorrelation probabilities, from low to high, based on the t_w and Spearman statistics. However, the fact that the most probable values of α are consistently close to zero implies that the strength of any such correlation is extremely weak or negligible (see the right column of Figure 2). Additionally, the broad distribution of delays within individual energy bins further supports the lack of a strong relationship between nanoflare energy and delay (see Figure 3). These conclusions also hold for subsets of high-energy nanoflares and are true whether the delays are compared with the energies of the previous events (E_previous) or with those of the subsequent events (E_next).

Figure 2: Statistical correlation results obtained via bootstrapping of the original nanoflare sample. First four histograms correspond to the (τ_D,E_previous) data set, and later four to (τ_D,E_next). Blue and red histograms represent results from the t_w and Spearman correlation statistics, respectively. Histograms of the left column correspond to the probability of uncorrelation between the nanoflare delays and their corresponding energies, while the right column demonstrates the histograms of the most probable values of α.

Figure 3: The figure illustrates the spread in nanoflare delays in the original dataset obtained from Method B. The bottom panel shows scatter plots of nanoflare energies (in J/m²) versus delays (in seconds). The middle and top panels display the mean and standard deviation of delays within each energy bin, with the bins defined by the red dashed lines in the bottom panel. The fact that the standard deviations (sigma delays) are comparable to the mean delays in each bin suggests that any correlation between τ_D and either E_previous or E_next is likely to be weak or statistically insignificant.

Conclusions

Our analysis shows that there is no significant relationship between the energy of nanoflares and the delay between successive events. The absence of correlation suggests that nanoflare onset is not solely determined by a critical value of magnetic stress and may involve triggering by other events, perhaps related to a locally complex topology.

Further details can be found in Ref. [5].

Acknowledgements

Co-authors James A. KLIMCHUK, Craig D. JOHNSTON, and Lars K. S. DALDORFF

References

[1] "Nanoflares and the solar X-ray corona"

[2] "Self-Consistent Heating of the Magnetically Closed Solar Corona: Generation of Nanoflares, Thermodynamic Response of the Plasma and Observational Signatures"

[3] 'Characterizing Nanoflare Energy and Frequency through Field Line Analysis"

[4] "The Distribution of Flare Parameters and Implications for Coronal Heating"

[5] "On the Relationship Between Nanoflare Energy and Delay in the Closed Solar Corona"
