The Hale Sector Boundary links flares to global magnetic fields

Nugget
Number:	537
1st Author:	Iain HANNAH
2nd Author:	Hugh HUDSON
Published:	October 12, 2026
Next Nugget:
Previous Nugget:	Photospheric flows in Sun-as-a-star EUV Doppler spectra

Introduction

When spacecraft first began to observe the interplanetary field, they found a remarkable property: the radial component appeared to alternate polarities on a few-day time scale. This became known as the "sector structure", and can be understood from the comparisons in Figure 1 (right panel). Often there are two or four sectors per solar rotation, and the scale of the homogenous field structures is many solar radii. At the other extreme, the magnetic field at the surface of the Sun (left panel) shows abundant fine structure "salt and pepper", at scales "measureless to man" - including the fine structures of solar flares. The surface separating the two polarities lies within the heliospheric current sheet.

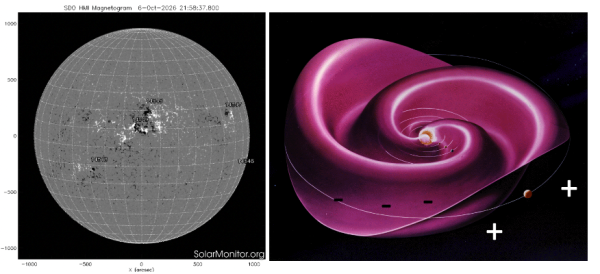

Figure 1: Figure 1. The extremes of solar magnetism. Left, the "salt-and-pepper" of the polarity distribution in the photosphere. Note how the systematic EW patterns differ between the NS hemispheres. Right, the iconic view of the heliospheric current sheet, which forms a warped surface separating the two (+/-) polarities. Because of the warps produced by field asymmetries, a fixed obsesrver see alternating sectors.

In this Nugget we describe the "Hale sector boundary" (Ref. [1]) and provide an interactive tool showing how it links these two extreme spatial scales. We define the Hale boundary as the "portions of the heliospheric magnetic-field polarity inversion structure where the polarity change has the same sense as the leading-to-following polarity transition of sunspot groups in that hemisphere" (Ref. [2]) This refers to the amazing hemispheric preference for the "leading" sunspot, in the sense of first appearance as the Sun rotate, to have the opposite polarity from the "trailing" sunspots in a group. This is guaranteed to be somewhat confusing, but Figure 2 shows examples that make it all very clear. These are from our Web-based interactive database of Hale sector boundaries, solar flares, and active regions.

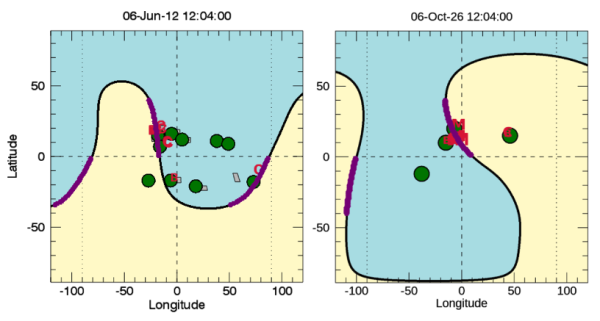

Figure 2: Two examples from the HSB Web tool. The purple symbols show where the Hale sector boundary occurs as the heliospheric current sheet sweeps below the solar equator; green dots show active regions, and red letters show flare locations.

Conclusions

The tendency for the smallest magnetic features to occur at where the largest-scale polarity structures meet is remarkable, but with a sketch one can see that the Hale boundary, and not the non-Hale boundary, is where opposing polarities prevail and may enable magnetic reconnection.

This Nugget describes our [interactive HSB database], but if you are interested there have been earlier Nuggets: [1], [2]

Historical note

The authors became interested in this subject via the encouragement of our late friend Leif Svalgaard.

References

[1] "Flaring Hale Sector Boundaries"

[2] "The association of the Hale sector boundary with RHESSI solar flares and active longitudes"
